Wire mesh gauges refer to the thickness of the wire used in the mesh, which is measured in American Wire Gauge, or by its diameter in inches or millimeters. They are a fundamental component for building anything from large buildings to strong garden fencing, security fencing, and cat enclosures. Keep reading for some common wire mesh gauges and their diameters.

What gauges is wire mesh available in?

• 6 gauge: 0.192 inches (4.88 mm)
• 8 gauge: 0.128 inches (3.25 mm)
• 10 gauge: 0.102 inches (2.59 mm)
• 12 gauge: 0.080 inches (2.03 mm)
• 14 gauge: 0.064 inches (1.63 mm)
• 16 gauge: 0.050 inches (1.27 mm)
• 18 gauge: 0.040 inches (1.02 mm)

Why understanding gauge size is essential for construction?

The gauge of, including wire diameter and strength, matters for several reasons:

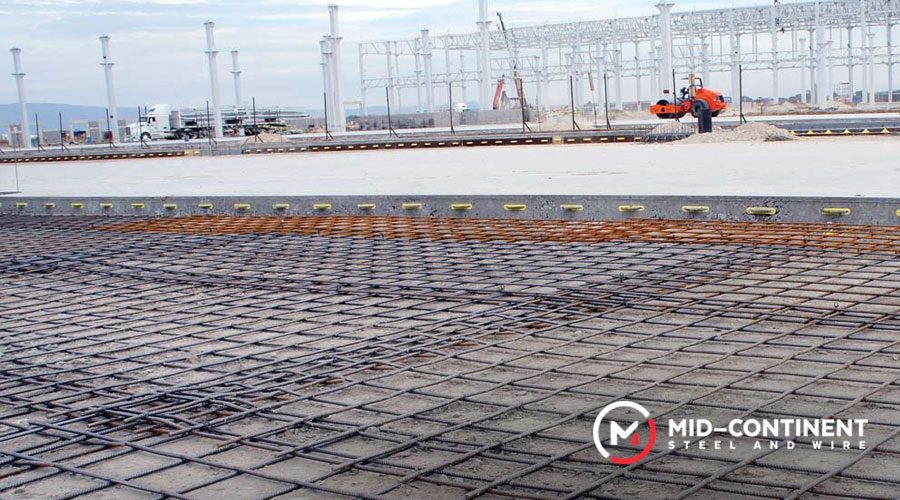

1. Strength and durability: Thicker wire (lower gauge number) provides greater tensile strength and durability, making it suitable for heavy-duty applications like concrete reinforcement, fencing, and industrial use.
2. Load-bearing capacity: The gauge affects the load-bearing capacity of the mesh. Thicker wires can support more weight and resist deformation, which is crucial in structural applications.
3. Application suitability: Different projects require different levels of strength and flexibility. For example, thinner wires (higher gauge number) may be sufficient for lighter applications, while thicker wires are necessary for more demanding environments.
4. Cost-effectiveness: Choosing the appropriate gauge can help manage material costs. Thicker wire is more expensive, so using the right gauge helps avoid unnecessary expenses without compromising safety.
5. Workability: Thinner wire is often easier to handle and manipulate, making it suitable for projects requiring intricate designs or tighter spaces.

Mid-Continent Steel and Wire mesh

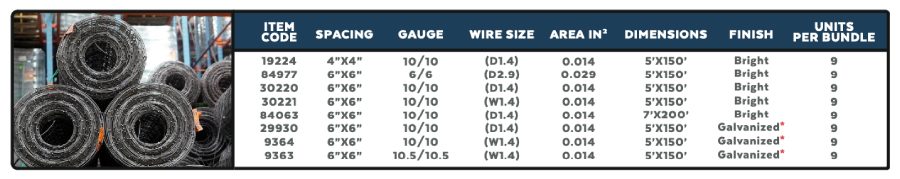

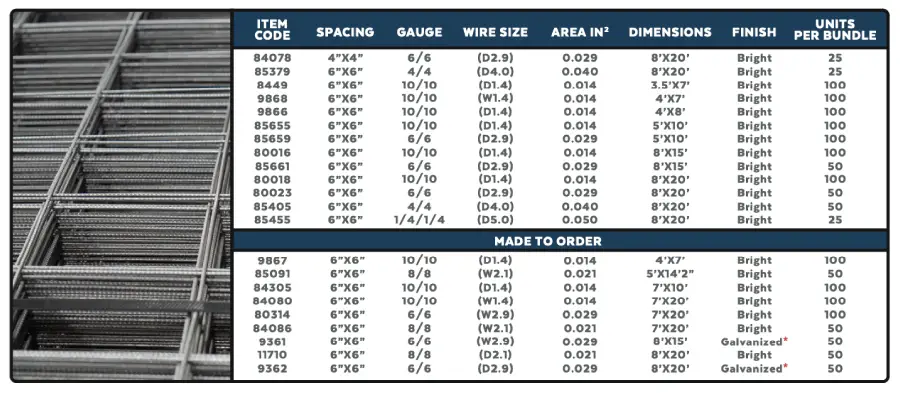

Our Welded Wire Mesh is available in a range of sizes and configurations to meet our customers’ specifications.

Description and nomenclature example:

• 6″x6″ Spacing (Longitudinal and Transversal)
• 10/10 Gauge (Longitudinal and Transversal)
• (D1.4) Wire Size
• 5’x150′ Roll/Sheet Size Pieces per Bundle (W X L)
• (9/BUNDLE) Pieces per Bundle

If you have any questions about our steel solutions, don’t hesitate to click here and we’ll be happy to assist you in the right specs for your project.
