Understanding I-beam sizes: a comprehensive guide

Understanding I-beam sizes: a comprehensive guide

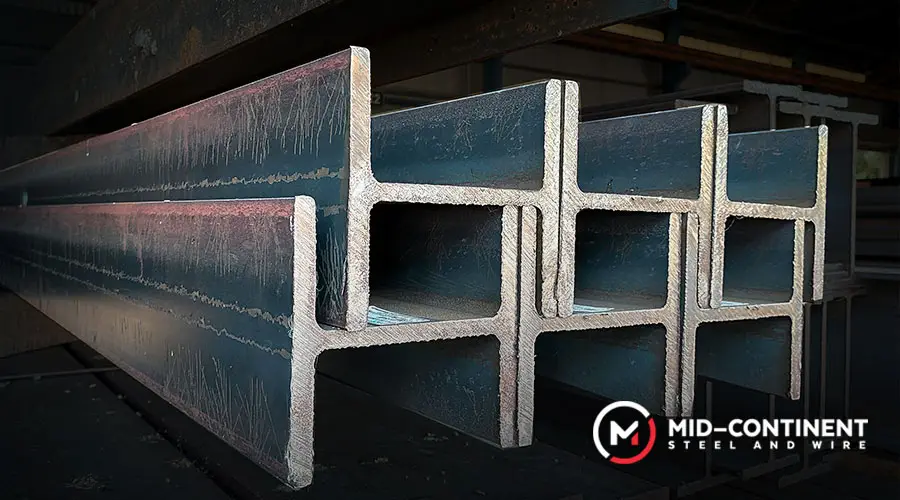

standard steel beams
standard steel beams

Standard sizes of I-beams

I-beams, also known as H-beams, are characterized by their cross-sectional shape. Their dimensions and properties are standardized for consistency and reliability in structural applications. I-beams efficiently resist bending and shear loads, making them ideal for various structural applications such as building frames, bridges, platforms, and crane rails.

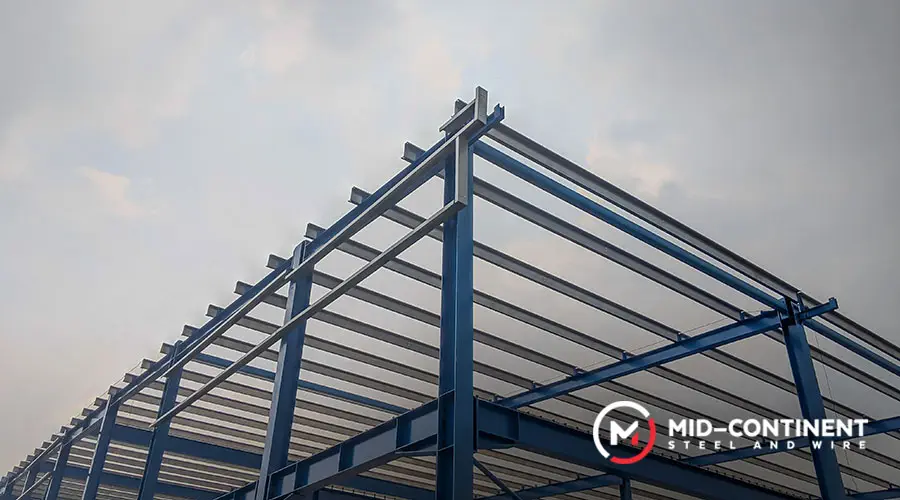

steel beams for construction
steel beams for construction

Designation and dimensions

I-beams are designated by the letter “S” followed by the nominal depth in inches and the weight in pounds per foot. For example, an I-beam labeled as S12x50 indicates:

  • Depth: 12 inches
  • Weight: 50 pounds per foot

Common standard sizes

The following table summarizes some common standard I-beam sizes:

DesignationDepth (inches)Weight (lbs/ft)Flange Width (inches)Web Thickness (inches)
S3x5.735.72.330.17
S4x7.747.73.000.20
S6x12.5612.54.000.25
S8x15815.05.000.25
S12x501250.08.000.50
S24x12124121.012.000.75

Variations

I-beams can also be categorized into standard and light varieties. Light I-beams have smaller thicknesses and lighter weights. The flange width varies with the model size, where smaller models have narrower flange widths.

Standards and regulations

The dimensions and properties of I-beams are regulated by various standards, including:

  • ASTM A992: Standard specification for structural steel shapes.
  • ASTM A36: Standard specification for carbon structural steel.
  • EN 10025: European standard for hot-rolled structural steel.

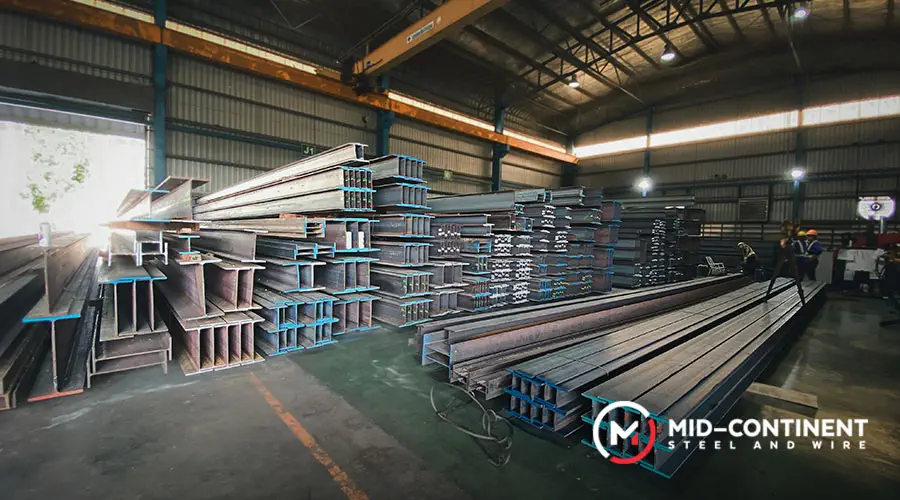

i-beam sizes
i-beam sizes

Considerations

When selecting an I-beam for a project, it is essential to consider factors such as:

  • Load-bearing capacity: The weight the beam must support.
  • Span length: The distance between supports.
  • Material properties: The type of steel and its characteristics.

Mid-Continent Steel and Wire Solutions

Our steel beams are crafted to offer a high strength-to-weight ratio, reducing material costs without compromising on safety and durability. They’re designed to withstand the harshest conditions, making sure your structures stand the test of time.

Check out our products and start building strong projects.
